概述
本文详解verl agentLoop的完整执行逻辑，以sandbox_fusion tool为例

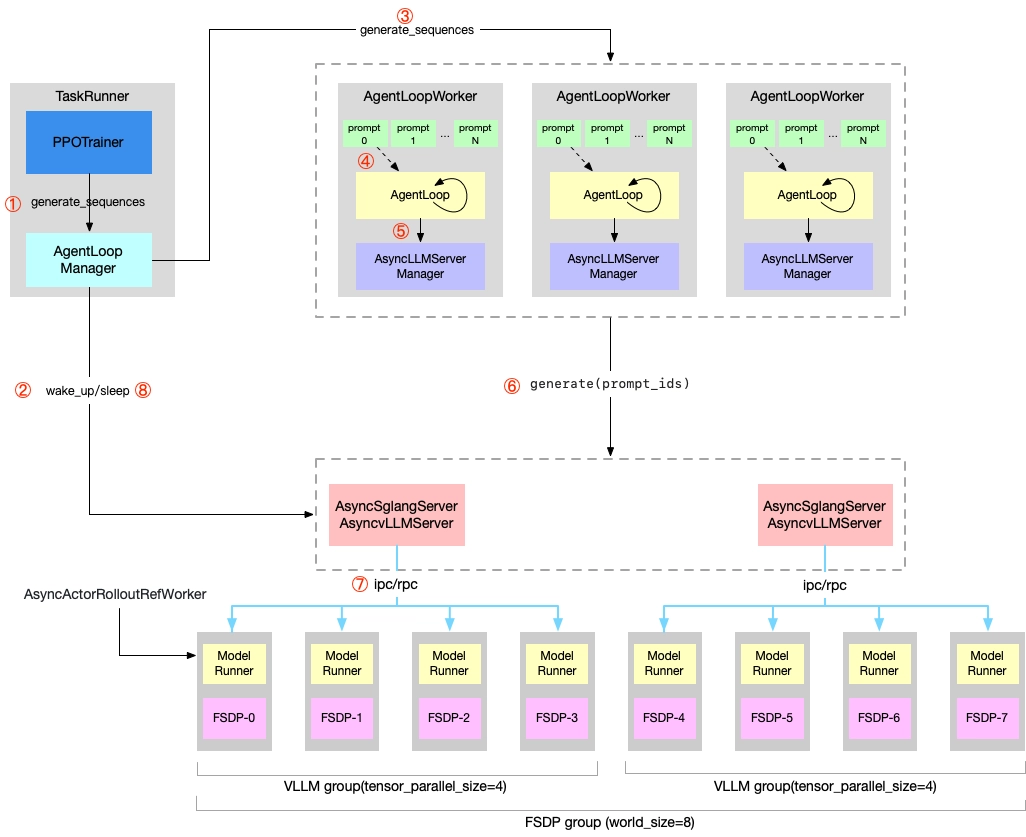

架构图
架构图来自verl 0.4.2文档
代码
从架构图来看，整个流程相对比较清晰了，最上层为定义在verl/experimental/agent_loop/下的agent_loop.py中AgentLoopManager，负责管理所有的AgentLoopWorker，初始化在verl/trainer/ppo/ray_trainer.py中的RayPPOTrainer类中，在init_workers(…)函数中，如果rollout mode为async，则创建AgentLoopManager，也从侧面说明了，目前verl只支持async mode下启用multi-turn，且必须为colocated模式
if self.config.actor_rollout_ref.rollout.mode == "async":
from verl.experimental.agent_loop import AgentLoopManager
self.async_rollout_mode = True
self.async_rollout_manager = AgentLoopManager(
config=self.config, worker_group=self.actor_rollout_wg, rm_wg=self.rm_wg
)在AgentLoopManager中，根据函数_init_agent_loop_workers()创建共rollout.agent.num_workers个AgentLoopWorker，创建时采用round-robin的方式，每个agent_loop_worker尽可能分布在不同的节点上
def _init_agent_loop_workers(self):
self.agent_loop_workers = []
num_workers = self.config.actor_rollout_ref.rollout.agent.num_workers
node_ids = [node["NodeID"] for node in ray.nodes() if node["Alive"] and node["Resources"].get("CPU", 0) > 0]
for i in range(num_workers):
# Round-robin scheduling over the all nodes
node_id = node_ids[i % len(node_ids)]
self.agent_loop_workers.append(
AgentLoopWorker.options(
name=f"agent_loop_worker_{i}",
scheduling_strategy=ray.util.scheduling_strategies.NodeAffinitySchedulingStrategy(
node_id=node_id, soft=True
),
).remote(self.config, self.server_handles, self.rm_executor)
)其中传入的server_handle的初始化为server.init_hybrid()，在函数中执行launch_servers()，随后在函数中直接执行SGLangHttpServer. launch_server()启动sglang server，其中_server_handle为server 0，_server_address与server_port同样，每一个SGLangReplica都有一个自己的server0也即master node；
# get http server address from first server
server_address, server_port = await self.servers[0].get_server_address.remote()
self._server_handle = self.servers[0]
self._server_address = f"{server_address}:{server_port}"在AgentLoopWorker中，创建AsyncLLMServerManager对象，负责管理所有的LLM Server，其中维护一个最小堆，记录每个server上分配的请求个数，确保请求server时时刻访问堆顶元素
class AsyncLLMServerManager:
"""
A class to manage multiple OpenAI compatible LLM servers. This class provides
- Load balance: least requests load balancing
- Sticky session: send multi-turn chat completions to same server for automatic prefix caching
"""
def __init__(self, config: DictConfig, server_handles: list[ray.actor.ActorHandle], max_cache_size: int = 10000):
"""Initialize the AsyncLLMServerManager.
Args:
config (DictConfig): YAML config.
server_handles (List[ray.actor.ActorHandle]): OpenAI compatible LLM server actor handles.
max_cache_size (int, optional): max cache size for request_id to server mapping. Defaults to 10000.
"""
self.config = config
self.server_handles = server_handles
random.shuffle(self.server_handles)
# Least requests load balancing
self.weighted_serveres = [[0, (hash(server), server)] for server in server_handles]
heapq.heapify(self.weighted_serveres)
# LRU cache to map request_id to server
self.request_id_to_server = LRUCache(maxsize=max_cache_size)接下来看上层框架如何调用进AgentLoop中
在RayPPOTrainer的主执行函数fit(…)中，如果async_rollout_mode为true，则执行async_rollout_manager.generate_sequences(…)，也即AgentLoopRolloutManager；
在generate_sequences(…)中，将batch按照AgentLoopWorker数量均分为chunk，调用每个worker的generate_sequence(…)函数
async def generate_sequences(self, batch: DataProto) -> DataProto:
"""Generate sequences from agent loop.
Args:
batch (DataProto): Input batch.
Returns:
DataProto: Output batch.
- prompts: [bsz, prompt_length], prompt token ids from dataset.
- responses: [bsz, response_length], output token ids include response tokens
from LLM generation and observation tokens from tool_calls.
- response_mask: [bsz, response_length], 1 for LLM generated tokens, 0 for observation/padding tokens.
- input_ids: [bsz, prompt_length + response_length], whole sequence token ids, including prompt tokens
and response tokens.
- attention_mask: [bsz, prompt_length + response_length], 0 for padding tokens, 1 for other tokens.
- position_ids: [bsz, prompt_length + response_length], incremental position ids.
For multi-turn conversations:
responses: |<- LLM generation ->|<- tool_calls ->|<- LLM generation ->|<- padding ->|
response_mask: | 1, 1, 1, ..., 1, 1 | 0, 0, .., 0, 0 | 1, 1, 1, ..., 1, 1 | 0, 0, ..., 0|
"""
config = self.config.actor_rollout_ref.rollout
sampling_params = dict(
temperature=config.temperature,
top_p=config.top_p,
repetition_penalty=1.0,
logprobs=config.calculate_log_probs,
)
# override sampling params for validation
if batch.meta_info.get("validate", False):
sampling_params["top_p"] = config.val_kwargs.top_p
sampling_params["temperature"] = config.val_kwargs.temperature
# by default, we assume it's a single turn agent
if "agent_name" not in batch.non_tensor_batch:
batch.non_tensor_batch["agent_name"] = np.array(["single_turn_agent"] * len(batch), dtype=object)
if "index" in batch.non_tensor_batch:
index = batch.non_tensor_batch["index"]
else:
index = np.arange(len(batch))
trajectory_info = await get_trajectory_info(
batch.meta_info.get("global_steps", -1), index.tolist(), batch.meta_info.get("validate", False)
)
tasks = []
for i in range(len(batch)):
kwargs = {k: v[i] for k, v in batch.non_tensor_batch.items()}
tasks.append(asyncio.create_task(self._run_agent_loop(sampling_params, trajectory_info[i], **kwargs)))
outputs = await asyncio.gather(*tasks)
output = self._postprocess(outputs)
return output其中，核心在于对于batch中的每个sample，都分别调用self._run_agent_loop(…)函数创建任务，
在_run_agent_loop(…)中，获取对应的AgentLoopBase，对于multi-turn来说则是定义在/verl/experimental/agent_loop/tool_agent_loop.py中的ToolAgentLoop类，随机调用他的run方法，核心相关代码如下，其中维护状态机实现agent_loop
# State machine loop
state = AgentState.PENDING
while state != AgentState.TERMINATED:
if state == AgentState.PENDING:
state = await self._handle_pending_state(agent_data, sampling_params)
elif state == AgentState.GENERATING:
state = await self._handle_generating_state(agent_data, sampling_params)
agent_data.assistant_turns += 1
elif state == AgentState.PROCESSING_TOOLS:
state = await self._handle_processing_tools_state(agent_data)
elif state == AgentState.INTERACTING:
state = await self._handle_interacting_state(agent_data)
agent_data.user_turns += 1
else:
logger.error(f"Invalid state: {state}")
state = AgentState.TERMINATED而在_handle_generating_state(…)中，则调用AsyncLLMServerManager.generate(…)方法，其中包含 choose负载最低的server，并调用该server的generate函数，即SGLangHttpServer.generate(…)，其中直接调用tokenizer_manager.generate_request()返回结果
async def generate(
self,
prompt_ids: torch.Tensor,
sampling_params: dict[str, Any],
request_id: str,
image_data: Optional[list[Any]] = None,
) -> TokenOutput:
"""Generate sequence with token-in-token-out."""
# TODO(@wuxibin): switch to `/generate` http endpoint once multi-modal support ready.
max_new_tokens = min(self.config.response_length, self.config.max_model_len - len(prompt_ids) - 1)
sampling_params["max_new_tokens"] = max_new_tokens
return_logprob = sampling_params.pop("logprobs", False)
request = GenerateReqInput(
rid=request_id,
input_ids=prompt_ids,
sampling_params=sampling_params,
return_logprob=return_logprob,
image_data=image_data,
)
output = await self.tokenizer_manager.generate_request(request, None).__anext__()
if return_logprob:
output_token_logprobs = output["meta_info"]["output_token_logprobs"]
log_probs, token_ids = zip(
*[(log_prob, token_ids) for log_prob, token_ids, _ in output_token_logprobs], strict=True
)
else:
token_ids = output["output_ids"]
log_probs = None
return TokenOutput(token_ids=token_ids, log_probs=log_probs)初始化工具
在每个ToolAgentLoop初始化的时候，会通过调用
tool_list = initialize_tools_from_config(tool_config_path) if tool_config_path else []初始化工具，其中详细看一下内部的实现，其中针对非mcp和mcp的tool有两种截然不同的初始化方式
def initialize_tools_from_config(tools_config_file):
tools_config = OmegaConf.load(tools_config_file)
tool_list = []
# Use a temporary event loop in a new thread because event
# loop may already exist in new async architecture while retaining
# backwards compatibility
tmp_event_loop = asyncio.new_event_loop()
thread = threading.Thread(target=tmp_event_loop.run_forever, name="mcp tool list fetcher", daemon=True)
def run_coroutine(coroutine):
if not thread.is_alive():
thread.start()
future = asyncio.run_coroutine_threadsafe(coroutine, tmp_event_loop)
return future.result()
async def stop_loop():
tmp_event_loop.stop()
try:
for tool_config in tools_config.tools:
cls_name = tool_config.class_name
tool_type = ToolType(tool_config.config.type)
tool_cls = get_tool_class(cls_name)
match tool_type:
case ToolType.NATIVE:
if tool_config.get("tool_schema", None) is None:
tool_schema = None
else:
tool_schema_dict = OmegaConf.to_container(tool_config.tool_schema, resolve=True)
tool_schema = OpenAIFunctionToolSchema.model_validate(tool_schema_dict)
tool = tool_cls(
config=OmegaConf.to_container(tool_config.config, resolve=True),
tool_schema=tool_schema,
)
tool_list.append(tool)
case ToolType.MCP:
mcp_tools = run_coroutine(initialize_mcp_tool(tool_cls, tool_config))
tool_list.extend(mcp_tools)
case _:
raise NotImplementedError
finally:
if thread.is_alive():
asyncio.run_coroutine_threadsafe(stop_loop(), tmp_event_loop)
thread.join()
return tool_list其中，启动一个thread，不断执行临时事件循环来注册mcp tool
先看普通tool register，也即ToolType.NATIVE，其中直接根据tool_cls初始化对象，将初始化的tool放入tool_list列表中
再来看MCP tool register
case ToolType.MCP:
mcp_tools = run_coroutine(initialize_mcp_tool(tool_cls, tool_config))
tool_list.extend(mcp_tools)其中启动一个协程将其丢入事件循环中，具体执行函数initialize_mcp_tool(…)函数
async def initialize_mcp_tool(tool_cls, tool_config) -> list:
from verl.tools.utils.mcp_clients.McpClientManager import ClientManager
tool_list = []
mcp_servers_config_path = tool_config.mcp.mcp_servers_config_path
tool_selected_list = tool_config.mcp.tool_selected_list if "tool_selected_list" in tool_config.mcp else None
await ClientManager.initialize(mcp_servers_config_path, tool_config.config.rate_limit)
# Wait for MCP client to be ready
max_retries = 10
retry_interval = 2 # seconds
for i in range(max_retries):
tool_schemas = await ClientManager.fetch_tool_schemas(tool_selected_list)
if tool_schemas:
break
if i < max_retries - 1:
logger.debug(f"Waiting for MCP client to be ready, attempt {i + 1}/{max_retries}")
await asyncio.sleep(retry_interval)
else:
raise RuntimeError("Failed to initialize MCP tools after maximum retries")
# mcp registry
assert len(tool_schemas), "mcp tool is empty"
for tool_schema_dict in tool_schemas:
logger.debug(f"tool_schema_dict: {tool_schema_dict}")
tool_schema = OpenAIFunctionToolSchema.model_validate(tool_schema_dict)
tool = tool_cls(
config=OmegaConf.to_container(tool_config.config, resolve=True),
tool_schema=tool_schema,
)
tool_list.append(tool)
return tool_list来看一下MCPClientManager.initialize(…)是如何初始化配置的，首先，加载config文件，获取其中的所有mcpServers，调用SSETransport建立连接，其中具体的url可以从各个官网上拿到
class MCPClientManager:
rootServerName = "mcpServers"
initialized = False
clients = []
tool_client_mapping = {}
rate_limiter = None
async def initialize(self, config_path, rate_limit: float = 10.0):
if self.initialized:
return
"""Initialize the MCP Client Manager and start all clients"""
result = self._load_config(config_path)
servers = result[self.rootServerName]
exclude_sse_servers = {self.rootServerName: {}}
for server_name in servers.keys():
server = servers[server_name]
if "auth_token" in server:
transport = SSETransport(url=server["url"], headers={"Authorization": f"Bearer {server['auth_token']}"})
client = Client(transport)
self.clients.append(client)
else:
exclude_sse_servers[self.rootServerName][server_name] = server
if exclude_sse_servers[self.rootServerName]:
self.clients.append(Client(exclude_sse_servers))
# Initialize rate limiter
self.rate_limiter = TokenBucket(rate_limit)
self.initialized = True当获得了所有的clients，后续在主函数中，尝试获取tools，存放入tool_schemas对立中，尝试max_retries次，一旦成功，则像通用tool一样初始化，后续调用工具时则直接利用先前建立连接的client即可
async def call_tool(self, tool_name, parameters, timeout):
# Apply rate limiting
while not self.rate_limiter.acquire():
await asyncio.sleep(0.1)
client = self.get_client_with_tool_name(tool_name)
async with client:
return await client.call_tool_mcp(tool_name, parameters)
