1. 概述
本文主要详解slime启动脚本train.py与train_async.py，本文着重详解train.py

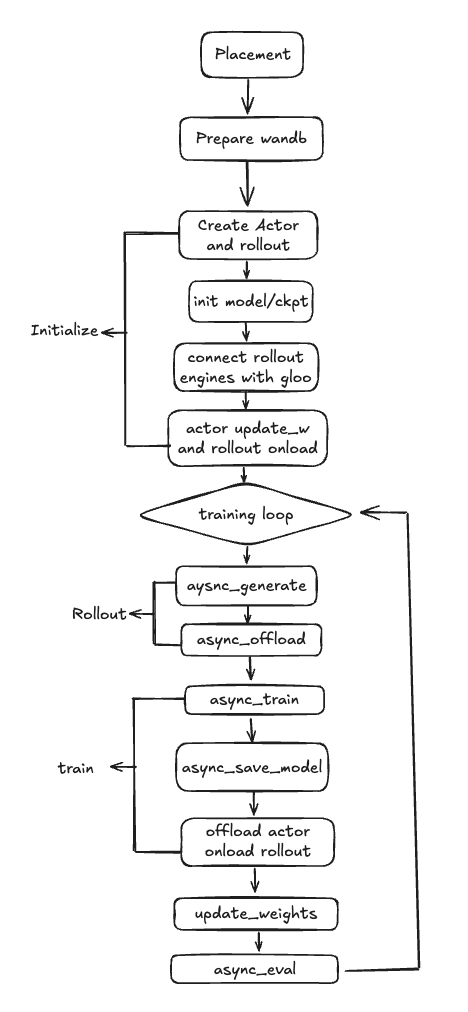

2. 主干pipeline
3. 分配创建资源
在create_placement_groups(…)函数中，主要负责ray资源的预留与分配，其中根据具体不同的模式分配资源，例如对于colocate模式，rollout与actor共用资源，而对于disaggregated模式，则两者使用不同的资源，根据offset决定rollout资源的开始索引
def create_placement_groups(args):
"""Create placement groups for actor and rollout engines."""
num_gpus = 0
if args.debug_train_only:
num_gpus = args.actor_num_nodes * args.actor_num_gpus_per_node
rollout_offset = 0
elif args.debug_rollout_only:
num_gpus = args.rollout_num_gpus
rollout_offset = 0
elif args.colocate:
num_gpus = args.actor_num_nodes * args.actor_num_gpus_per_node
rollout_offset = 0
else:
num_gpus = args.actor_num_nodes * args.actor_num_gpus_per_node + args.rollout_num_gpus
rollout_offset = args.actor_num_nodes * args.actor_num_gpus_per_node
print(f"Creating placement group with {num_gpus} GPUs...")
// ... ... 其中_create_placement_group(…)中，利用info_actors首先分配了num_gpus数量的bundle，每个bundle占有一个GPU和一个CPU，随后根据他们的ip与gpu index进行排序，尽可能吧相同节点的GPU排到一起，随后释放info_actors占用资源，根据offset记录分配的actor gpu资源与rollout gpu资源
def create_placement_groups(args):
"""Create placement groups for actor and rollout engines."""
// ... ...
pg, actor_pg_reordered_bundle_indices = _create_placement_group(num_gpus)
rollout_pg_reordered_bundle_indices = actor_pg_reordered_bundle_indices[rollout_offset:]
return {
"actor": (pg, actor_pg_reordered_bundle_indices),
"rollout": (pg, rollout_pg_reordered_bundle_indices),
}随后初始化wandb相关信息，随后根据先前分配给actor和rollout的gpu资源信息，调用create_actor_group(…)与create_rollout_manager(…)启动actor和rollout
在create_actor_group(…)中，根据对应的训练backend选择对应的TrainActor，例如对于megatron后端而言则是MegatronTrainRayActor，通过ray.remote()统一封装为TrainRayActor，并根据world_size的数量调用TrainRayActor.options(…).remote(…)，其中world_size的数量即为actor的gpu数量，也即 self._num_nodes * self._num_gpus_per_node。
注：其中有一个非常有意思的点，在options选项中指定num_gpus=num_gpus_per_actor，该参数在前面被指定为0.8，观察发现rollout时则被指定为0.2，则猜想该设计原因应该主要是为了针对colocated架构，并未rollout和actor分别分配0.2与0.8的GPU推荐显存防止OOM
def allocate_train_group(args, num_nodes, num_gpus_per_node, pg, wandb_run_id):
return RayTrainGroup(
args=args,
num_nodes=num_nodes,
num_gpus_per_node=num_gpus_per_node,
pg=pg,
wandb_run_id=wandb_run_id,
num_gpus_per_actor=0.8,

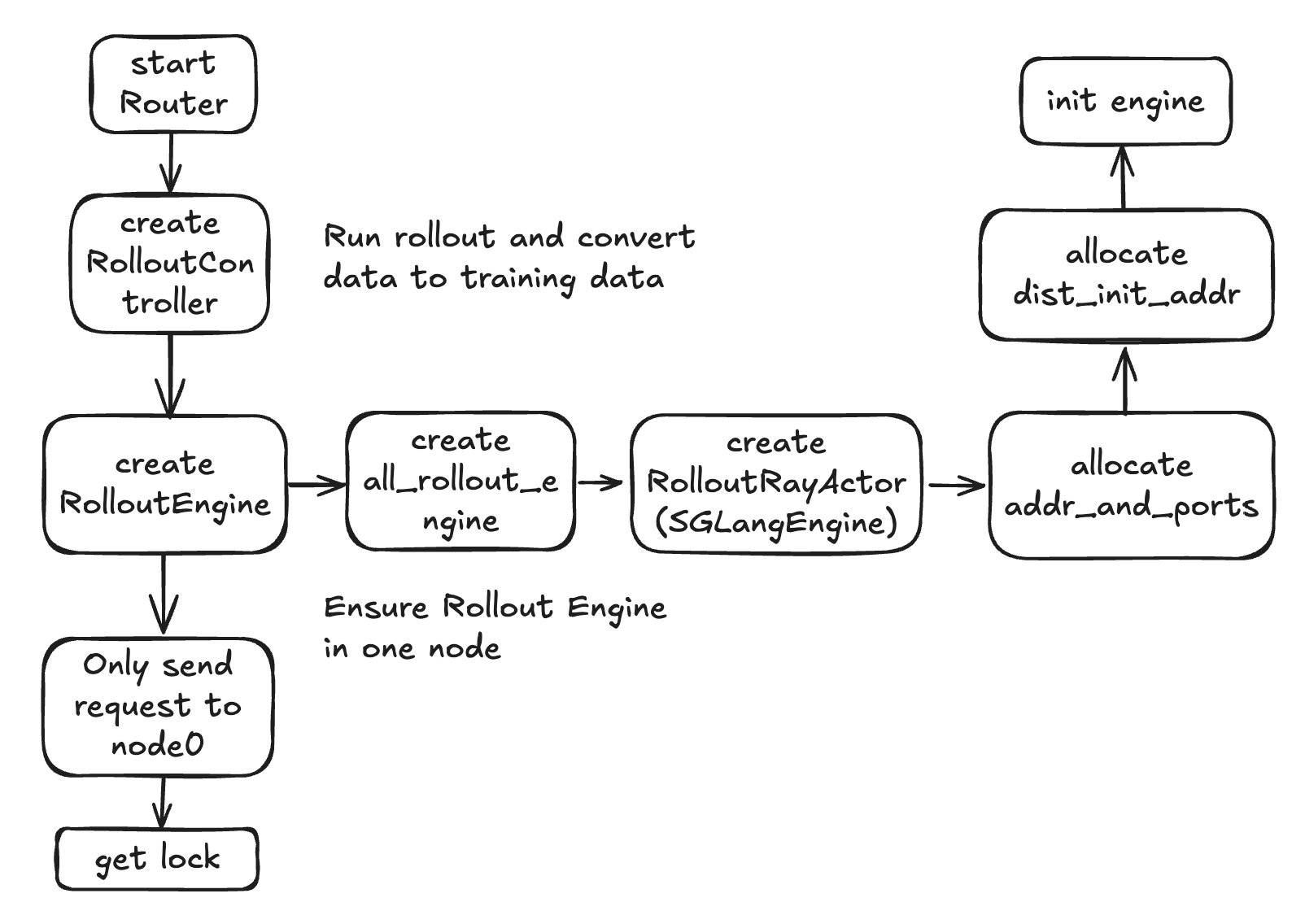

)create_rollout_manager(…)则主要负责rollout部分的初始化工作，主要流程图如下：
其中，在RolloutController创建中，会生成RolloutDataSourceWithBuffer对象，并且根据自定义的路径定义generart_rollout, eval_generate_rollout和custom_reward_post_process_func函数，下面看下RolloutDataSourceWithBuffer函数
3. DataSourceWithBuffer
核心代码在slime/ray/rollout_data_source.py中，其中主要定义两个核心类RolloutDataSource和RolloutDataSourceWithBuffer，负责为rolloutEngine提供数据，下图展示获取数据的完整流程
其中RolloutController调用get_sample(…)从Data source处获得返回的sample，随后调用generate_rollout(…)进行rollout生成；
RolloutDataSource
-
init()：初始化中会定义是否启用rollout_global_dataset，默认为True，从—prompt-data中获取真实数据集，不然则设置self.dataset=None，用户可自行维护。
-
get_samples():
def get_samples(self, num_samples): samples = [] # TODO unify the two branches if self.dataset is not None: if self.sample_offset + num_samples <= len(self.dataset): prompt_samples = self.dataset.samples[self.sample_offset : self.sample_offset + num_samples] self.sample_offset += num_samples else: prompt_samples = self.dataset.samples[self.sample_offset :] num_samples -= len(prompt_samples) self.epoch_id += 1 if self.args.rollout_shuffle: self.dataset.shuffle(self.epoch_id) prompt_samples += self.dataset.samples[:num_samples] self.sample_offset = num_samples for prompt_sample in prompt_samples: group = [] for _ in range(self.args.n_samples_per_prompt): sample = copy.deepcopy(prompt_sample) sample.index = self.sample_index self.sample_index += 1 group.append(sample) samples.append(group) else: for _ in range(num_samples): group = [] for _ in range(self.args.n_samples_per_prompt): sample = Sample( index=self.sample_index, ) self.sample_index += 1 group.append(sample) samples.append(group) return samples根据num_samples取出对应的所需sample(batch)，如果到达边界，则取最后剩余部分，并根据所需数量从头开始取样，并记录epoch++，同时支持rollout_shuffle；随后，为sample复制n_sample_per_prompt数量，为GRPO服务
-
save & load:
save保存目前取样的情况，包括sample_offset与epoch_id等等
load则是从save的取样情况读取，确保数据一致性
RolloutDataSourceWithBuffer
- init: 通过设置buffer_filter_path指定选取数据策略，默认为pop_first
- get_samples: 优先从buffer获取数据，如果不够则从原始数据集补充
- add_samples：将sample添加至buffer中，添加时保证每个prompt有n_samples_per_prompt个sample
4. RL主流程
主要关注async_generate(…)是如何生成prompt所需的response的完整流程，其中关注multi-turn与tool-call方式；
aysnc_generate(…)会调用RolloutController.generate(…)函数，在其中，会调用generate_rollout(…)函数获取实际的输出，并且如果获取的data长度不能整除global_batch_size，则trim多余的尾部数据，随后调用_convert_samples_to_train_data将sample转换成满足训练的格式；
其中generate_rollout(…)为在default配置下，为定义在路径/slime/rollout/sglang_rollout.py函数下的generate_rollout；
generate_rollout_async
下面详解该函数中的完整逻辑，其中首先定义核心对象GenerateState，用来管理生成状态，其中包括sampling_params等等
async def generate_rollout_async(args, rollout_id: int, data_source) -> list[list[Sample]]:
"""An example to implement the generate_rollout function for an rule based rm rollout generation.
Args:
args: the whole args
rollout_id: int, the id of the rollout, used for deterministic data generation
data_source: the data source to fetch
Returns:
list[list[Sample]]: a list of samples generated by the rollout, the length of the list is exactly the same as the `rollout_batch_size`
"""
assert args.rollout_global_dataset
state = GenerateState(args)
// ... ...记录target_data_size与dynamic_filter等值，进入while循环，直到获取的data总长度达到target_data_size，即rollout_batch_size
注意，其中每有一个group完成(一个prompt的所有sample，共n_samples_per_prompt个），则打印第一个group的第一个rollout sample，随后判断是否需要dynamic_filter，并将group添加至data list中
当获取满足要求的data后，输出最后一个prompt的第一个sample，并abort剩余还在生成的多余请求(over_sampling_batch_size ≥ target_data_size)，根据每个group的第一个prompt的index进行排序
generate_rollout_async
在generate_rollout_async中，主要通过在submit_generate_tasks(…)中的generate_and_rm_group来获取sample与reward值，函数定义如下
async def generate_and_rm_group(args, group: list[Sample], sampling_params: dict, evaluation=False) -> list[Sample]:
state = GenerateState(args)
if state.aborted:
return group
group = await asyncio.gather(
*[generate_and_rm(args, sample, sampling_params.copy(), evaluation=evaluation) for sample in group]
)
# for the rm that need the whole group, we will not do the rm here
if not state.aborted and args.group_rm:
rewards = await batched_async_rm(args, group)
for sample, reward in zip(group, rewards):
sample.reward = reward
return group调用generate_and_rm并发生成所有的sample和reward model，对于需要整个组执行reward model的，则调用batch_async_rm生成reward；
async def generate_and_rm(args, sample: Sample, sampling_params: dict, evaluation=False) -> Sample:
# For samples with existing response, check if they're complete
if sample.status == Sample.Status.COMPLETED or sample.status == Sample.Status.TRUNCATED:
assert sample.response is not None
if not args.group_rm:
assert sample.reward is not None
return sample
state = GenerateState(args)
# generate
async with state.semaphore:
if state.aborted:
sample.status = Sample.Status.ABORTED
return sample
if args.custom_generate_function_path is not None:
custom_generate_func = load_function(args.custom_generate_function_path)
sample = await custom_generate_func(args, sample, sampling_params)
else:
sample = await generate(args, sample, sampling_params)
# for the rm that need the whole group, we will not do the rm here
if args.group_rm:
return sample
# multi samples
if isinstance(sample, list):
samples = sample
if any([sample.status == Sample.Status.ABORTED for sample in samples]):
return samples
# for multi agent system, the reward of some sample is calculated during generation.
samples_need_reward = [sample for sample in samples if sample.reward is None]
rewards = await batched_async_rm(args, samples_need_reward)
for sample, reward in zip(samples_need_reward, rewards):
sample.reward = reward
return samples
else:
if sample.status == Sample.Status.ABORTED:
return sample
sample.reward = await async_rm(args, sample)
return sample其中custom_generate_function_path为自定义的generate函数，对于工具调用类，则定义在slime/examples/retoo/generate_with_retool.py中；判断是否需要group计算reward，如果不是group生成reward，则调用batched_async_rm获取rewards函数；
batched_async_rm同样根据自定义的custom_rm_path获取自定义reward函数，对于工具调用类同样定义在slime/examples/retool/generate_with_retool.py中
Tool-call流程
async def generate(args, sample: Sample, sampling_params) -> Sample:
"""Custom generation function supporting tool calls"""
assert not args.partial_rollout, "Partial rollout is not supported for " "this function at the moment."
state = GenerateState(args)
url = f"http://{args.sglang_router_ip}:{args.sglang_router_port}/generate"
# Set up the initial prompt with system prompt and tools (outside the loop)
tool_specs = tool_registry.get_tool_specs()
prompt = format_conversation_with_tools(prompt=sample.prompt, tools=tool_specs)
prompt_tokens_ids = state.tokenizer(prompt, add_special_tokens=False)["input_ids"]
response = ""
response_token_ids = []
loss_masks = []
tool_call_count = 0 # Track actual tool call rounds
for turn in range(TOOL_CONFIGS["max_turns"]):
# Simple: just send prompt + response
payload = {
"text": prompt + response,
"sampling_params": sampling_params,
}
# Log payload to wandb for debugging
try:
import wandb
if wandb.run is not None:
# Count available tools (from tool_specs)
available_tools = len(tool_specs)
# Count tools used in the current response
tools_used = response.count("<interpreter>")
wandb.log(
{
"debug/payload_length": len(prompt + response),
"debug/available_tools": available_tools,
"debug/tools_used": tools_used,
"debug/turn": turn,
}
)
except ImportError:
pass # wandb not available
output = await post(url, payload, use_http2=args.use_http2)
# Handle abort
if output["meta_info"]["finish_reason"]["type"] == "abort":
sample.status = Sample.Status.ABORTED
return sample
cur_response = output["text"]
cur_response = postprocess_responses(cur_response)
# Record current response tokens
cur_response_token_ids = state.tokenizer(cur_response, add_special_tokens=False)["input_ids"]
response += cur_response
response_token_ids += cur_response_token_ids
loss_masks += [1] * len(cur_response_token_ids)
# Check length limit
if output["meta_info"]["finish_reason"]["type"] == "length":
break
next_obs, done = await execute_predictions(cur_response)
if done:
break
# Count tool calls (when we get interpreter output, it means a tool
# was called)
if "<interpreter>" in next_obs:
tool_call_count += 1
assert next_obs != "", "Next observation should not be empty."
obs_tokens_ids = state.tokenizer(next_obs, add_special_tokens=False)["input_ids"]
response += next_obs
response_token_ids += obs_tokens_ids
loss_masks += [0] * len(obs_tokens_ids)
# Check if maximum tool call count reached
if turn >= TOOL_CONFIGS["max_tool_calls"]:
break
# Set sample attributes
sample.tokens = prompt_tokens_ids + response_token_ids
sample.response_length = len(response_token_ids)
sample.response = response
sample.loss_masks = loss_masks
# Store payload information for wandb logging
sample.payload_text = prompt + response
sample.payload_has_system = "<|im_start|>system" in prompt + response
sample.payload_has_tools = "# Tools" in prompt + response
# Store tool call count for reward calculation
sample.tool_call_count = tool_call_count
# Set status
match output["meta_info"]["finish_reason"]["type"]:
case "length":
sample.status = Sample.Status.TRUNCATED
case "abort":
sample.status = Sample.Status.ABORTED
case "stop":
sample.status = Sample.Status.COMPLETED

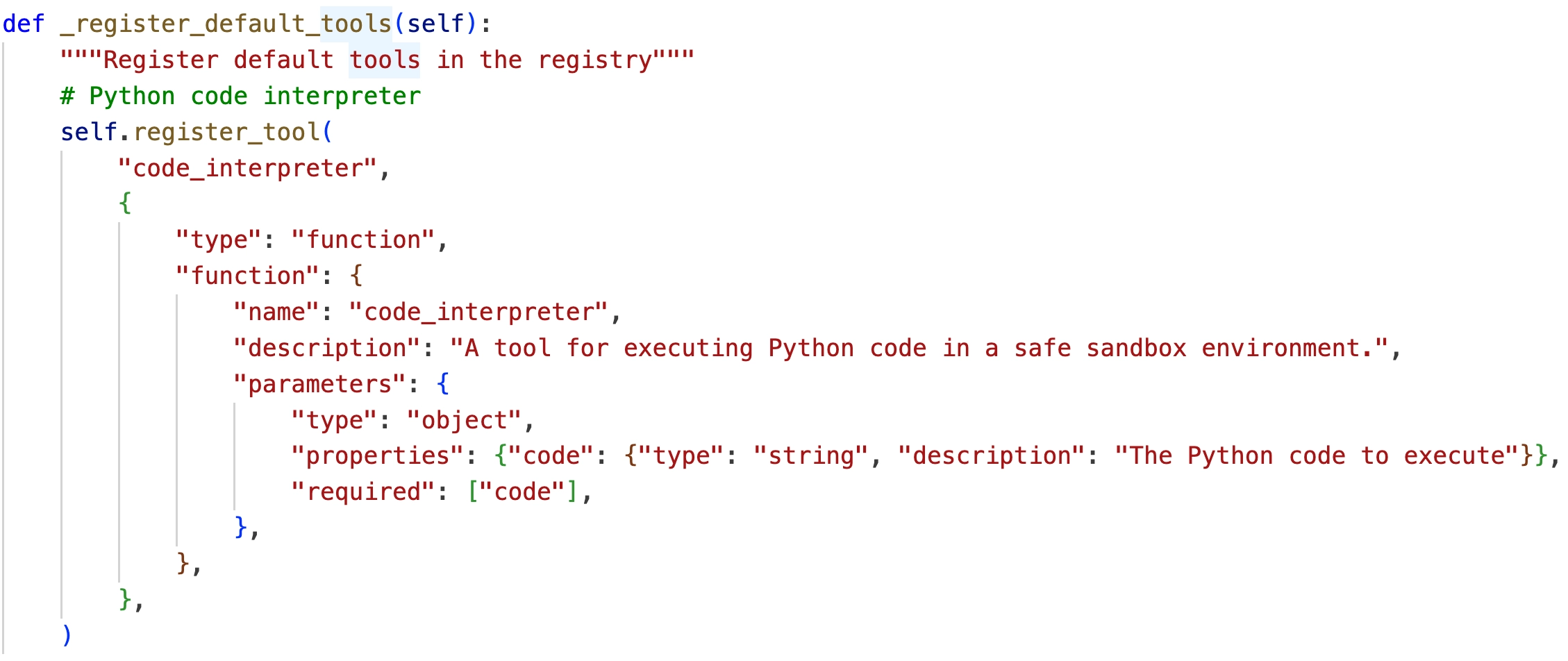

return sample目前在ToolRegistry中注册的工具只有code_interpreter一种，具体的注册定义如下
目前在slime中工具调用的格式分为三种，system_content、sample.prompt、messages(from previous turn)，转化为标准格式，调用format_conversation_with_tools(…)获取对应的prompt；

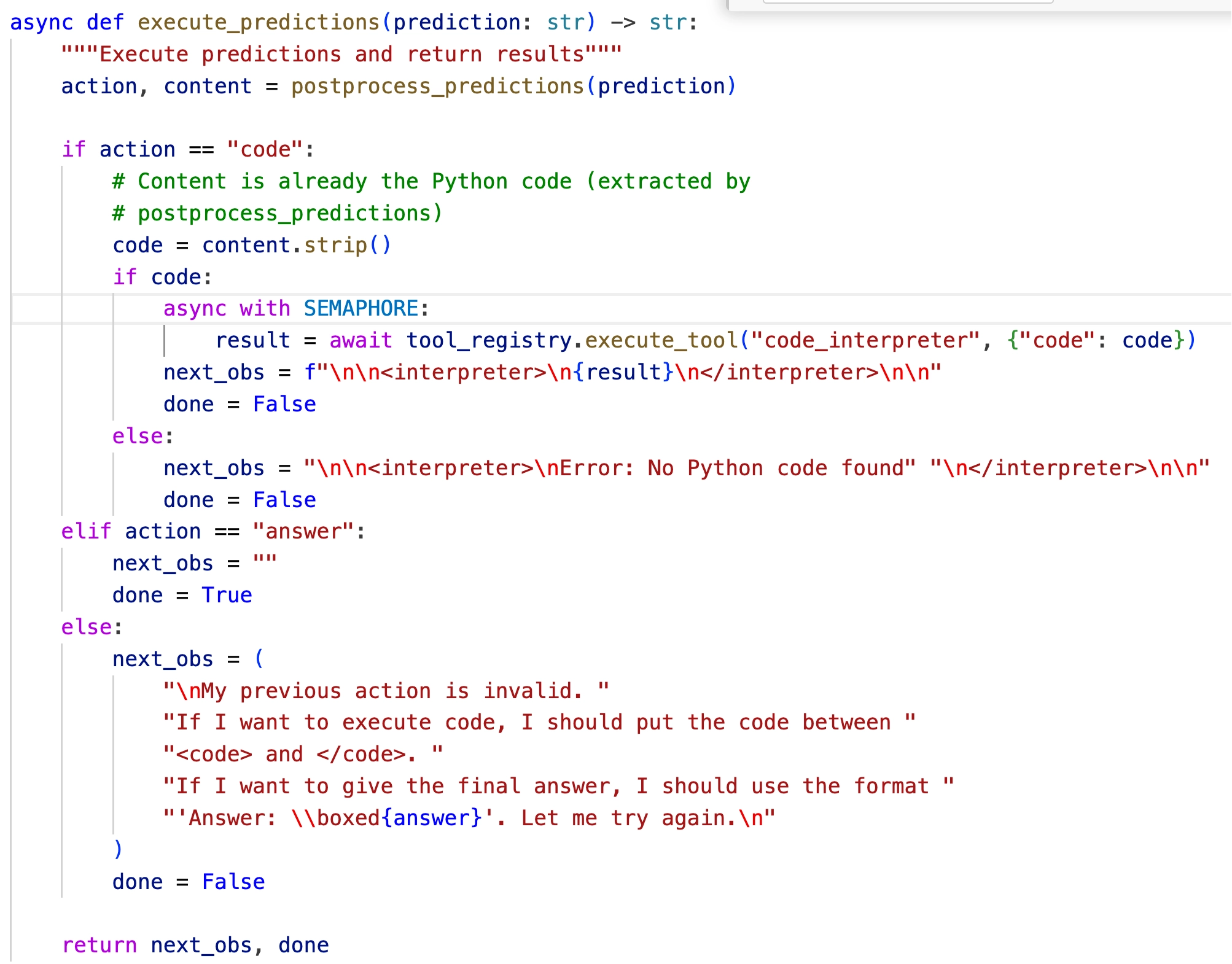

直接调用http请求的post将请求发送给sglang_router，对返回的请求进行后处理，随后，调用execute_prefictions函数，从response中分割出对应的action和content，如果action为”code”，则调用tool_registry.execute_tool(…)执行工具，将对应的result存入next_obs中，返回，若发现模型response格式有错误，则添加引导性的prompt
具体的执行在tool_registry.execute_tool(…)中，其中具体的函数执行流程为：
- 检查内存使用率
- 检查代码安全性
- 增添必要的wrapper来限制内存使用，同时将用户代码用try进行保护
- 创建环境_create_sage_environment(…)并临时创建code.py文件，将内容写入，使用python3执行代码，将结果返回
